RAM Dashboard Mount with Blacking Plate and Tab-Tite Holder for 9" Tablets Kit 1.5" Ball
SKU: RAM-101B2-TAB20U
By RAM Mounts
$190.95

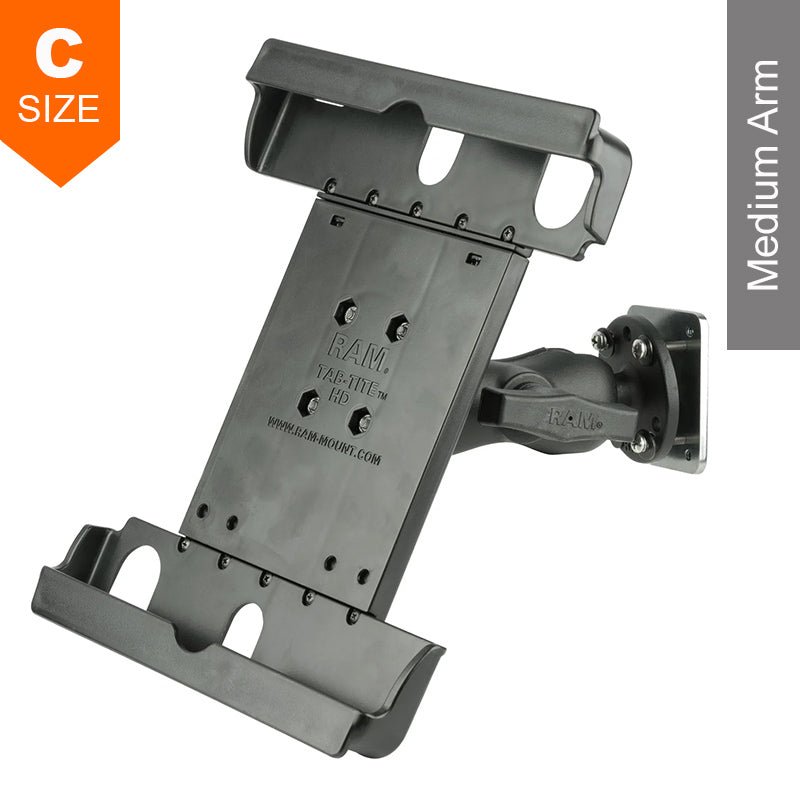

This rugged dashboard tablet mount consists of a RAM Tab-Tite spring-loaded holder for any 9"-10.5" tablets with a case, medium C size double socket arm, two 63mm (2.5") diameter round bases that contain the universal AMPS hole pattern and a 53mm x 66mm (2.1" x 2.6") backing plate with mounting hardware.

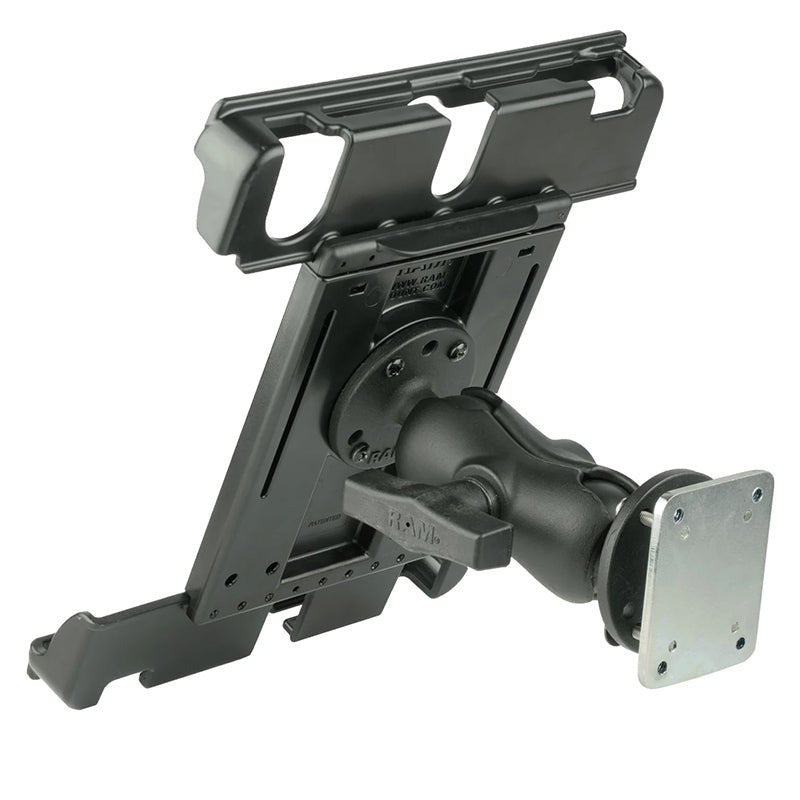

The steel backing plate provides additional support and strength when mounting the kit on flat dashboard sections of trucks, utes and other vehicles. Simply select the location and mark the holes according to the round plate. Drill through the plastic dashboard surface and place the steel backing plate on the back. Use the included mounting hardware to secure the round plate to the dashboard surface by securing it through the steel plate.
The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
Cradle Dimensions:
Height: 241mm to 308mm (9.5" to 12.125")
Width: 166mm to 189mm (6.55" to 7.43")
Depth: 8mm to 22mm (0.3" to 0.875")
Mounting Plate Dimensions:
53mm x 66mm (2.1” x 2.6”)
Features:
• Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
• Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
Dimensions:
Overall Height 305mm (12”)
Material:
Powder Coated Steel, High Strength Composite & Powder Coated Marine Grade Aluminium
Ball Size:
C Size 1.5” Rubber Ball
TAB-TITE TABLET HOLDER SIZES
The table below lists all of the available Tab-Tite models in the RAM Mounts range together with suggested device compatibility. Use the model number in the search bar to find the Tab-Tite in our store.
