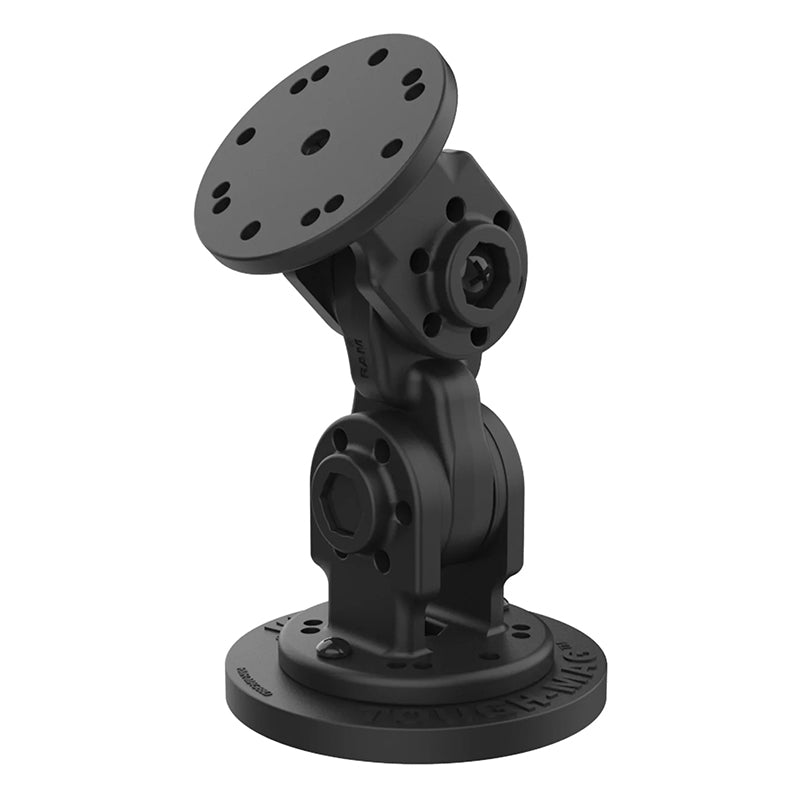

RAM Tough-Mag Dual 90-Degree Pivot Magnetic AMPS Mount

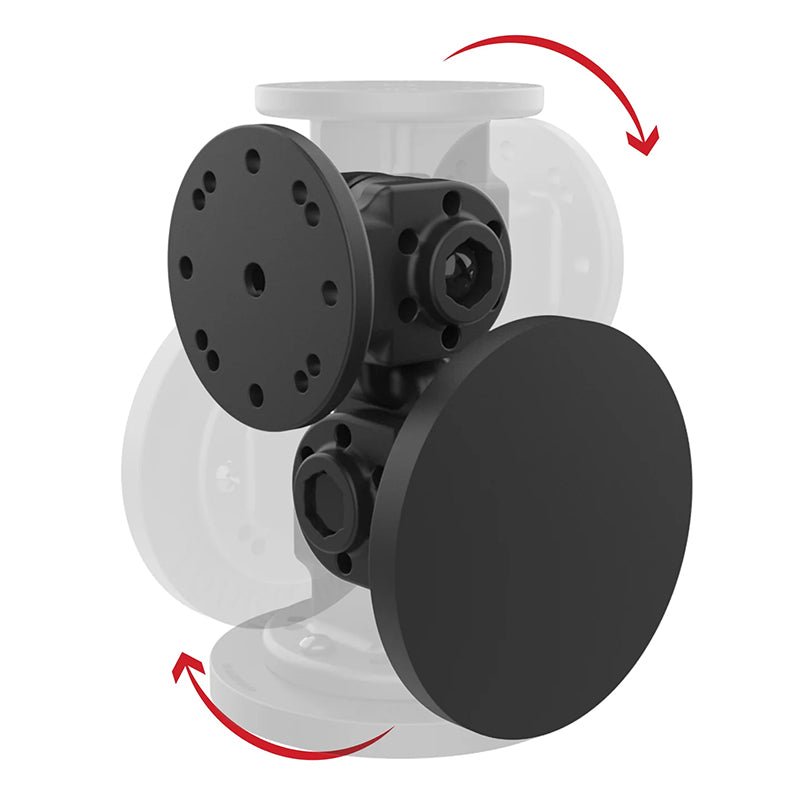

The RAM Dual 90-Degree Pivot Magnetic Mount is a low-profile, magnetic mounting solution with two articulating hinges in opposing directions so users can easily pivot their device up to 180-degrees in all directions.

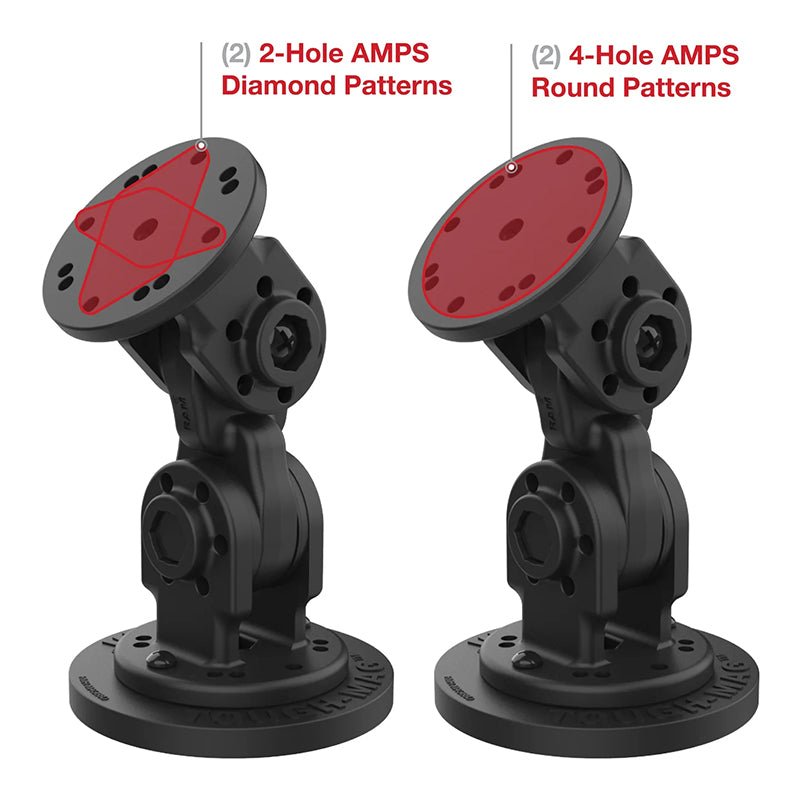

One end features a 63mm round base with both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag 88mm magnetic base.

This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilises a barrel nut instead of traditional adjustment knobs to provide tamper resistance and is ideal for high-traffic environments.

The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that attach magnetically to any ferrous metal surface and a rubber coating that protects the metal surface you're attaching to.

Dimensions:
Overall Height: 139mm (5.47”)
Top Plate Diameter: 63mm (2.5")
Magnetic Base Diameter: 88mm (3.46)

Hole Pattern:
2-Hole AMPS: 48.5mm (1.912")
4-Hole AMPS: 30mm x 38mm (1.181” x 1.496”)

Material:
High Strength Composite
