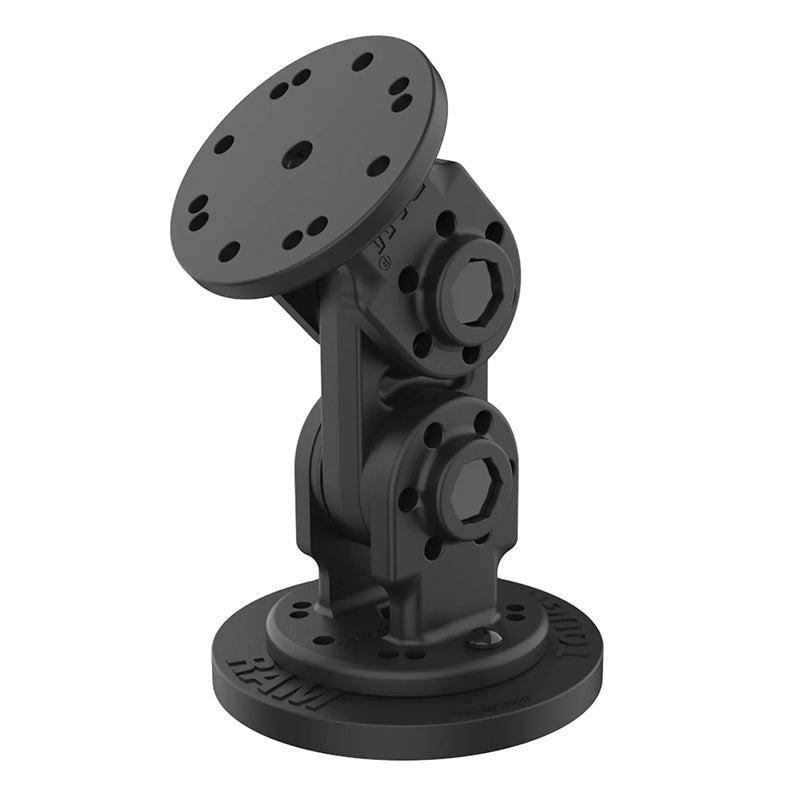

RAM Tough-Mag Dual Straight Pivot Magnetic AMPS Mount
The RAM Dual Straight Pivot Magnetic Mount is a low-profile, dual articulating, magnetic mounting solution.
One end features a 63mm round base with both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag 88mm magnetic base.

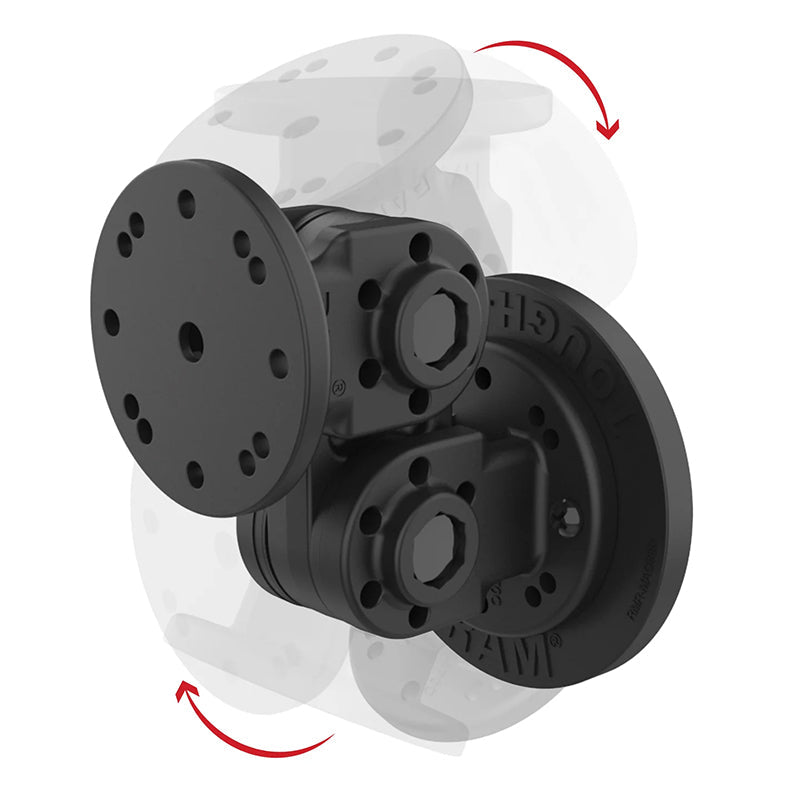

This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device up to 180-degrees on each joint to achieve the ideal viewing angle.

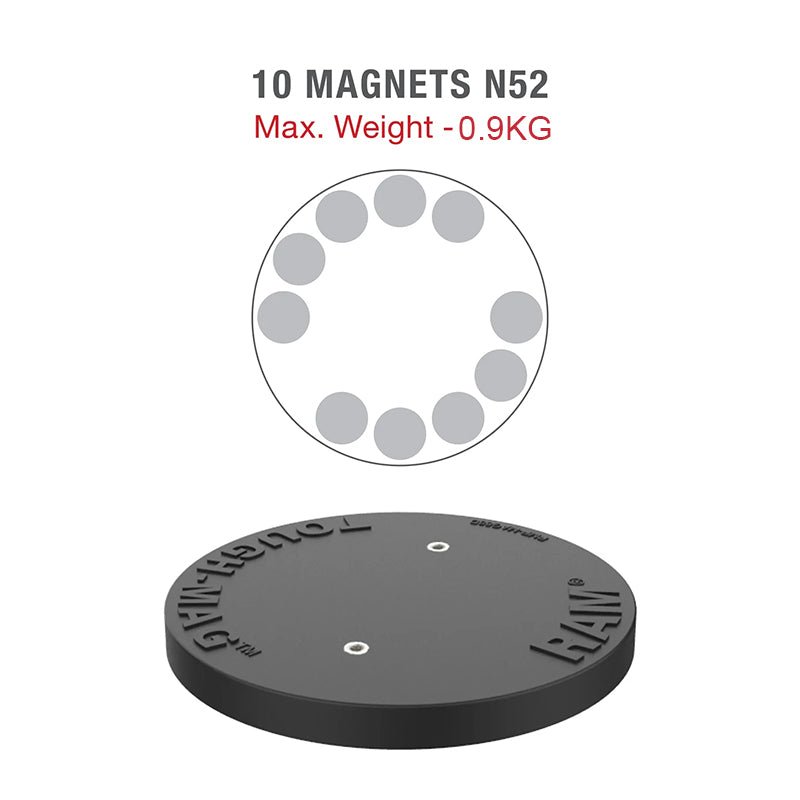

The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that attach magnetically to any ferrous metal surface and a rubber coating that protects the metal surface you're attaching to.

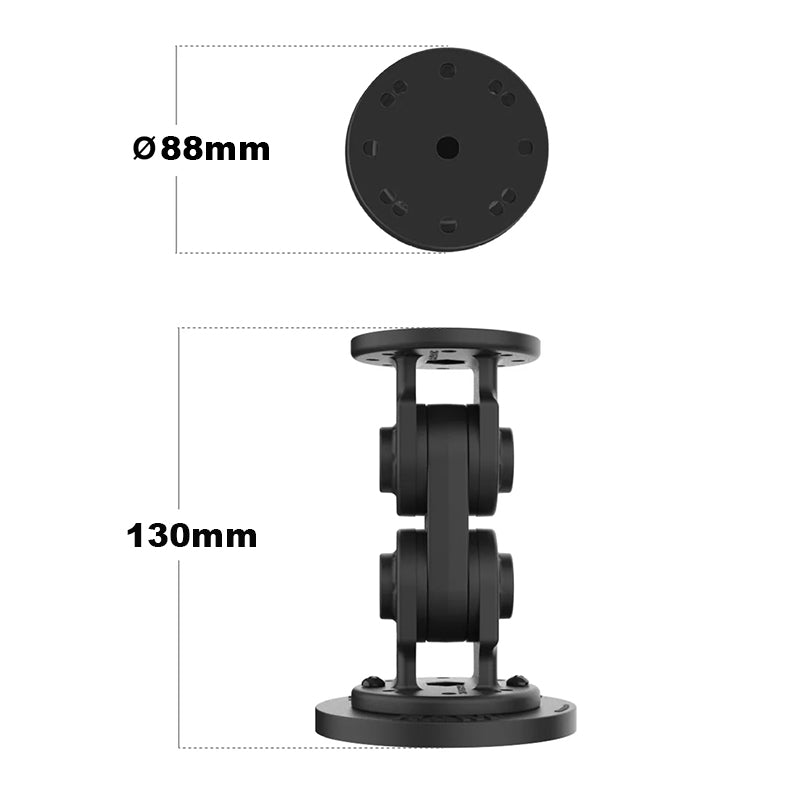

Dimensions:
Overall Height: 130mm (5.14”)
Overall Width with Knobs: 233mm (9.16”)
Top Plate Diameter: 63mm (2.5")
Magnetic Base Diameter: 88mm (3.46)

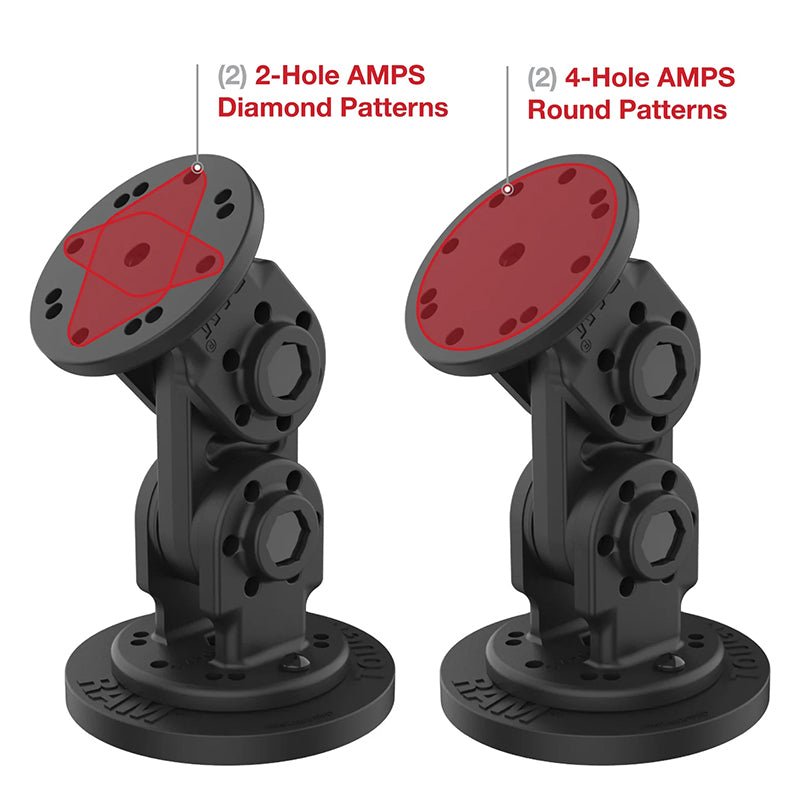

Hole Pattern:
2-Hole AMPS: 48.5mm (1.912")
4-Hole AMPS: 30mm x 38mm (1.181” x 1.496”)
Material:
High Strength Composite
