RAM Curved Extension Base 1" Ball

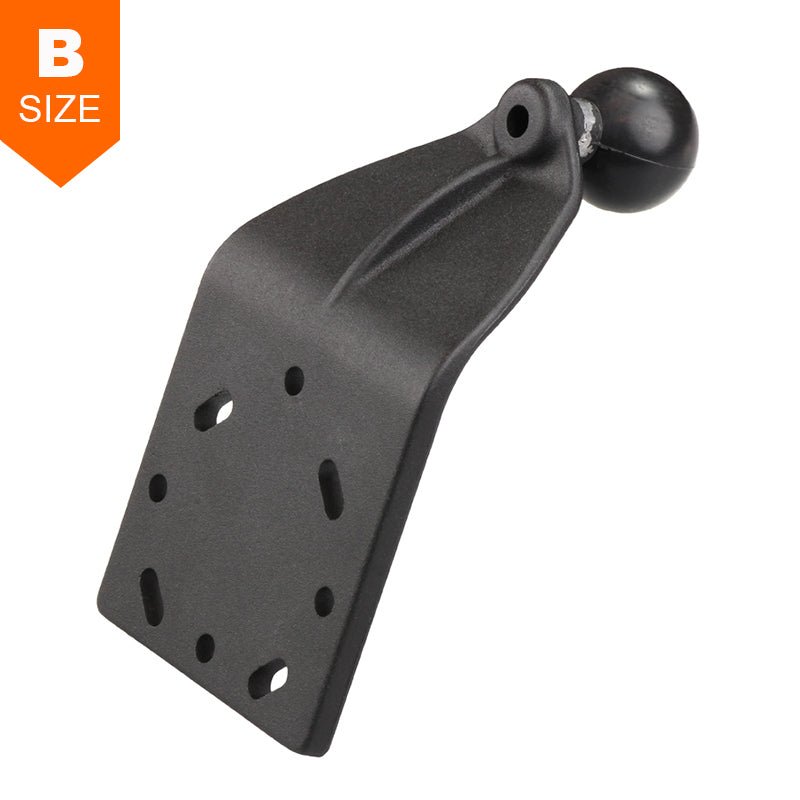

The RAM-B-125BU, curved extension base includes a 1" rubber ball which allows for almost infinite adjustment and perfect viewing angles.
Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 63mm (2.5") square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern to suit many of the RAM made cradles.
The connection section extends approximately 57mm (2.25") forward at a 45 degree angle from the centre of the 1" ball and approximately 38mm (1.5'') above the 1" ball (to the bottom of the connection section of the plate).
Plate Dimensions:
63mm x 63mm (2.5” x 2.5”)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
