RAM GDS Uni-Conn Vehicle Bundle Mount Kit for Apple iPad mini 6 & 7 (A17 Pro) 1.5" Ball

The RAM-GDS-U1-AP36-KIT1 GDS Uni-Conn Vehicle Bundle for Apple iPad mini 7 (A17 Pro) & mini 6 is a comprehensive kit of everything needed to install the Apple iPad mini in your fleet.

It contains one GDS Uni-Conn dock, Uni-Conn adapter, iPad mini 7 (A17 Pro) & mini 6 Intelliskin and heavy duty, C sized double ball mount with backing plate.

The steel backing plate provides additional support and strength when mounting the kit on flat dashboard sections of trucks, utes and other vehicles. Simply select the location and mark the holes according to the round plate. Drill through the plastic dashboard surface and place the steel backing plate on the back. Use the included mounting hardware to secure the round plate to the dashboard surface by securing it through the steel plate.

The GDS Uni-Conn dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin-wrapped iPad mini into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet.

The IntelliSkin Next Generation protective sleeve for the Apple iPad mini 7 (A17 Pro) & mini 6 combines a hard plastic shell with soft, shock-absorbing rubber. Ruggedized contacts for repetitive docking in field applications remain on the exterior but are now flat to collect less dirt and allow for easier cleaning. An integrated USB Type-C connector at the bottom of the skin allows for device charging even when you don’t have a GDS Dock available. The Intelliskin provides military-grade drop protection and helps prevent damage to your device’s charging port from constant docking with an integrated GDS connector moulded directly into the skin.

Specifications:
Output Power: 15W
Output Voltage: 5V – 12V @ 3A Max

Features:

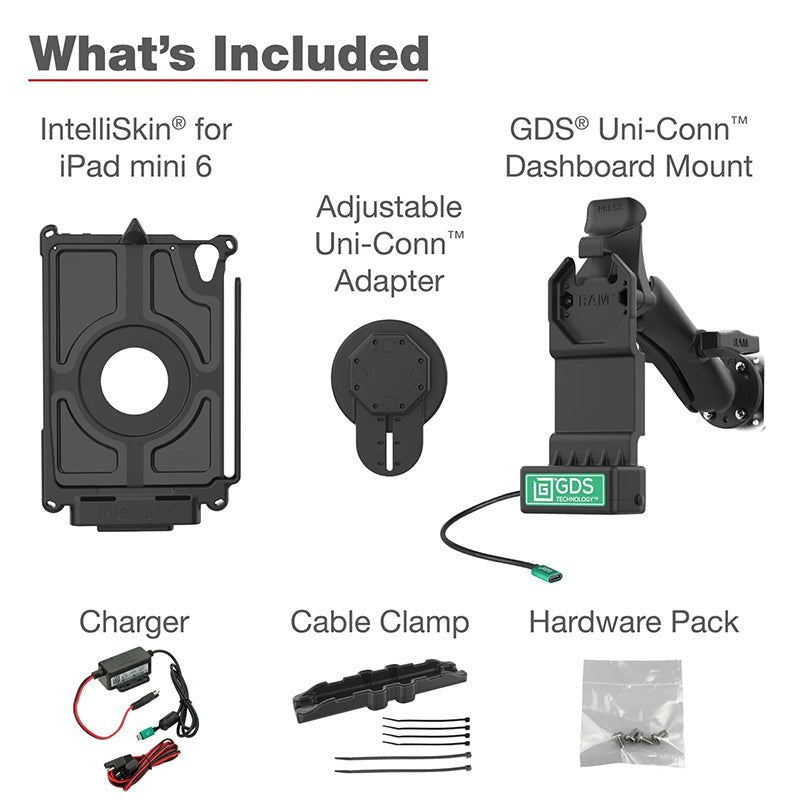

•    Bundle includes the GDS Uni-Conn dock, Uni-Conn adapter, IntelliSkin Next Gen case for Apple iPad mini 7 (A17 Pro) & mini 6, C size double ball mount with medium arm, backing plate adapter, and cable clamp
•    Dock features GDS Technology for charging capabilities with USB-C port to connect to power
•    Uni-Conn dock features easy device insertion and removal

Material:
Steel, High Strength Composite & Powder Coated Marine Grade Aluminium

Ball Size:
C Size, 1.5” Rubber Ball

Please note, the GDS Uni-Conn is backed by a 3-year warranty. The warranty is void if the lever stop is not installed.
