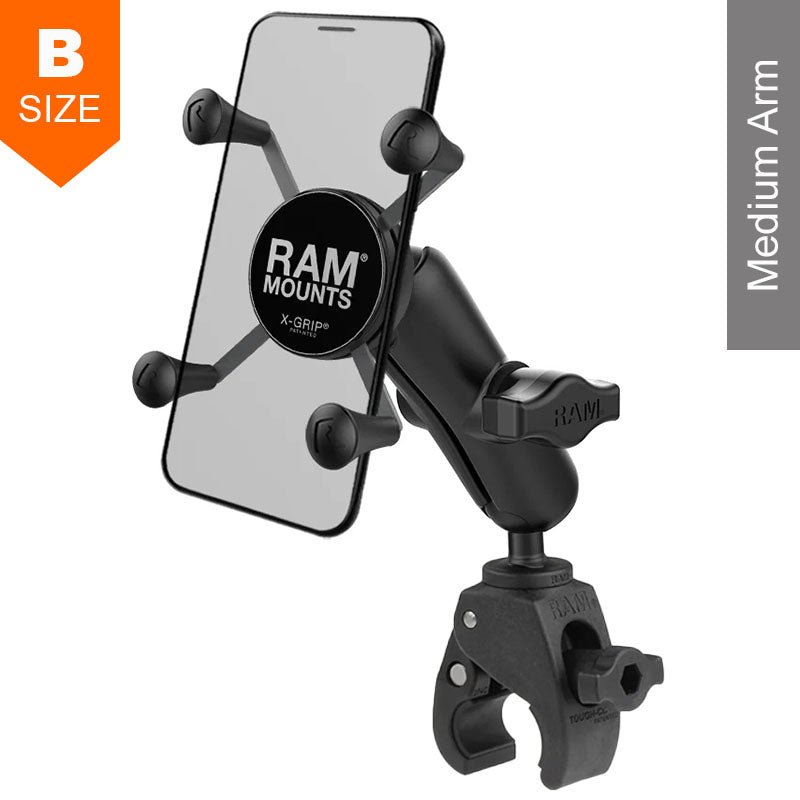

RAM Tough-Claw Small Clamp Large X-Grip Phone Mount Kit 1" Ball
The RAM-B-400-UN10U consists of the Tough-Claw rail clamp base, double socket arm and large universal spring-loaded X-Grip cradle for larger phones.
The spring-loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your phone. Included are easy access grip knobs for quick insertion and release of your handheld device.

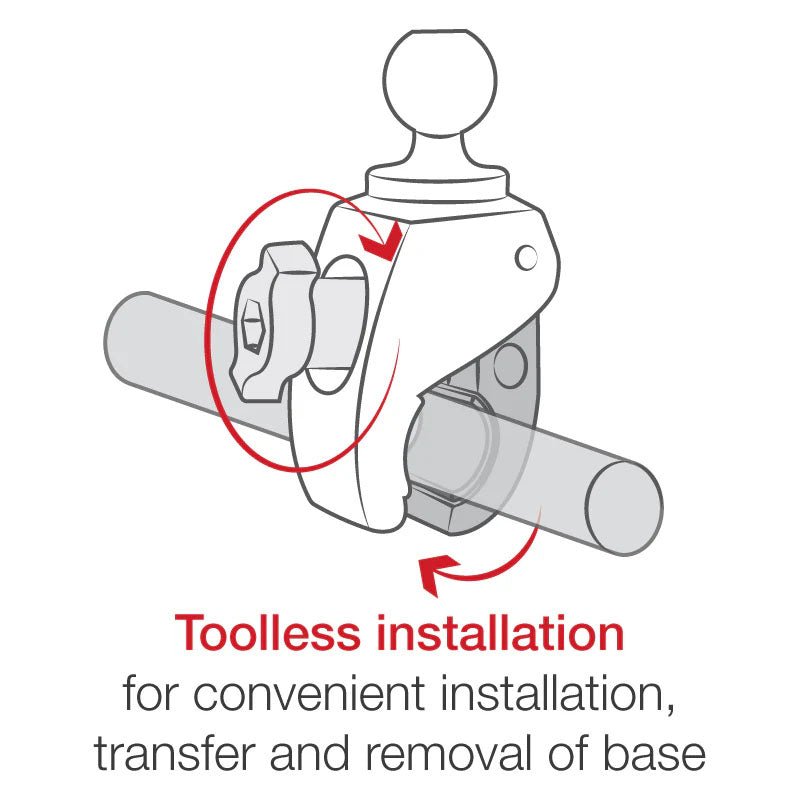

The Tough-Claw rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd, shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 29mm (0.625" - 1.14") outer diameter.

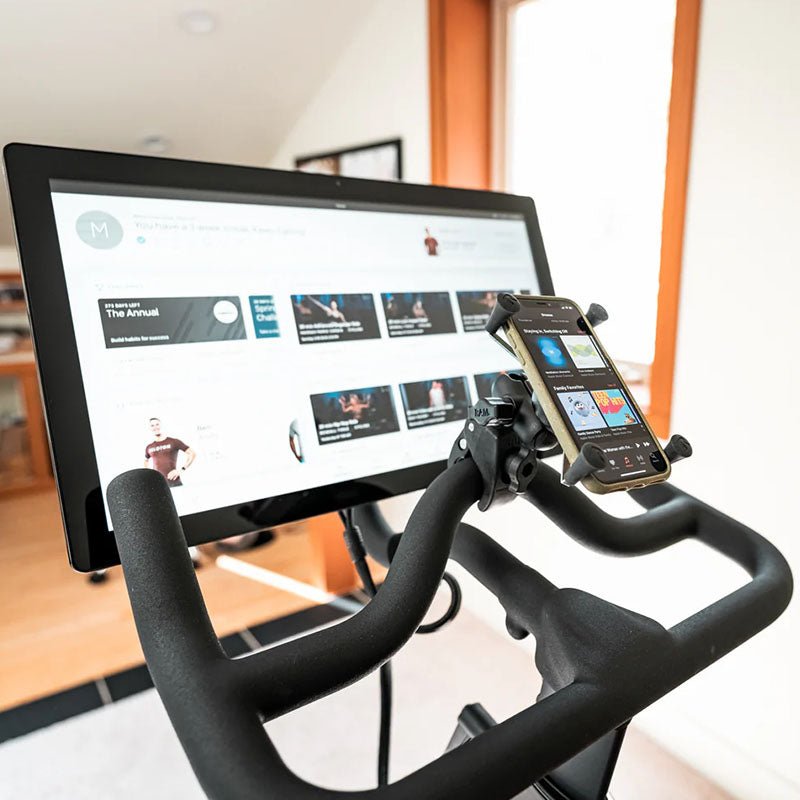

Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options.
The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Dimensions:

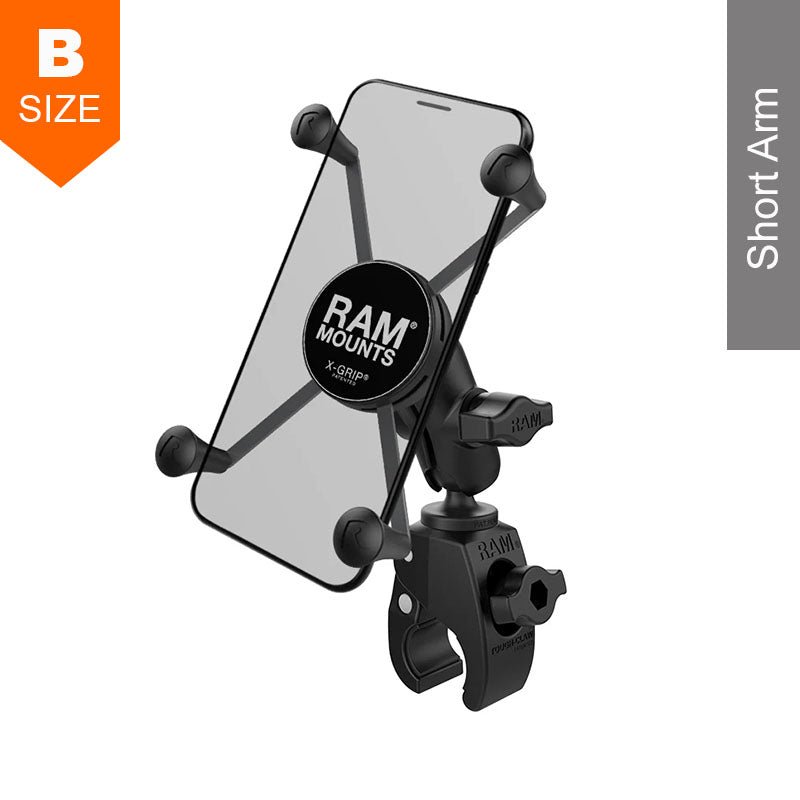

| Short Arm | Overall Arm Length: 60mm (2.42") |
| Socket-To-Socket Arm Length: 44.5mm (1.75") | |
| Medium Arm | Overall Arm Length: 95mm (3.73") |
| Socket-To-Socket Arm Length: 76mm (3") | |

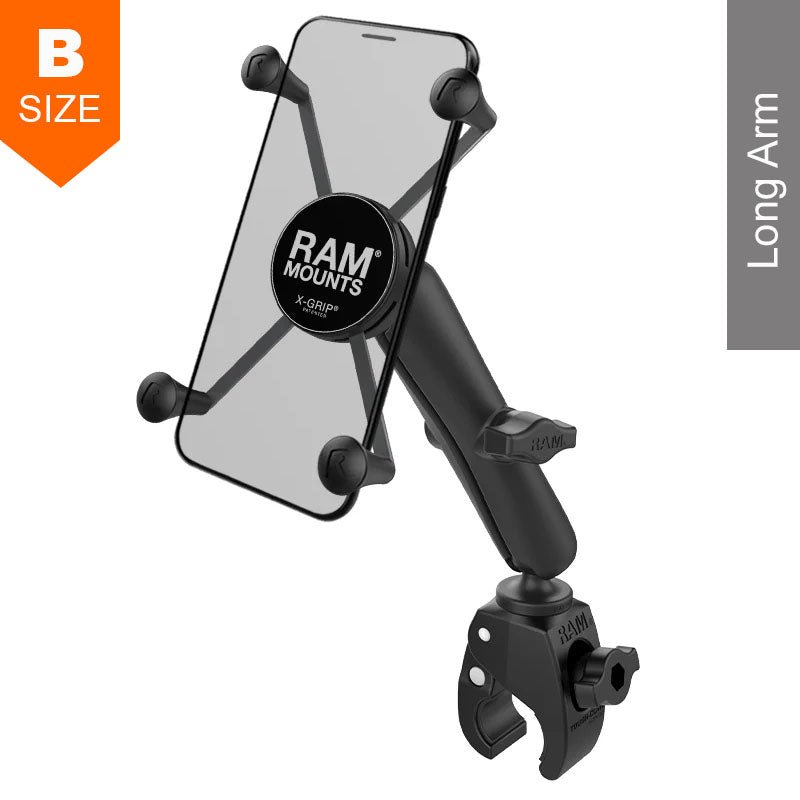

| Long Arm | Overall Arm Length: 152mm (6") |
| Socket-To-Socket Arm Length: 135mm (5.31") |
Cradle Dimensions:

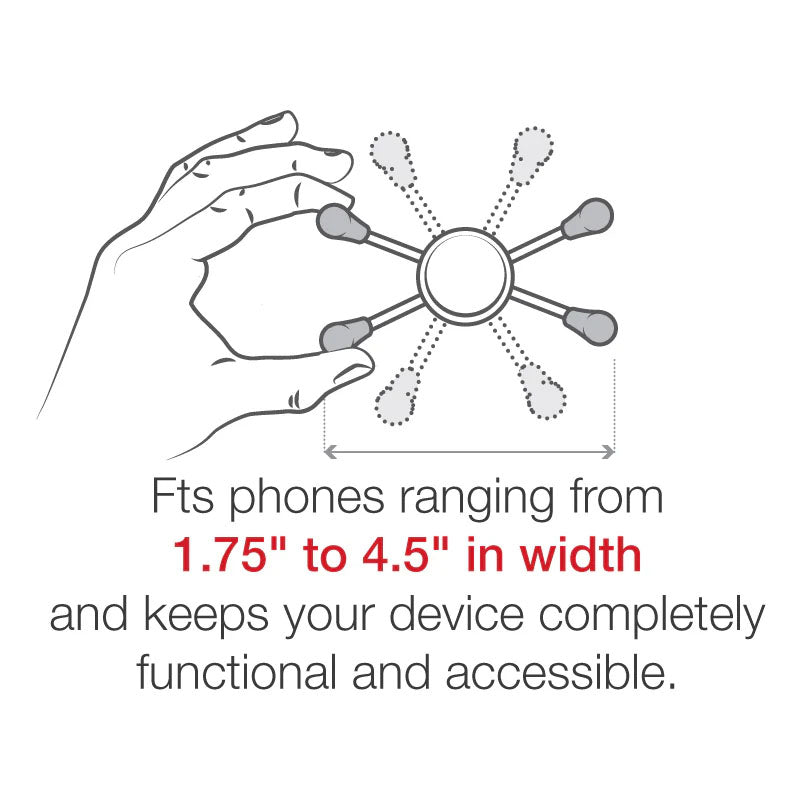

Maximum Width = 114mm (4.5”)
Minimum Width = 45mm (1.75”)
Depth = 22mm (0.875”)
Clamping Range (Rail/Tube Surfaces):
16mm to 29mm (0.625" to 1.14")
Features:
1. Rustproof
2. High strength composite and stainless-steel construction
3. Spring loaded cradle expands and contracts for perfect fit of your device
4. Rubber coated tips will hold device firm and stable
5. Socket technology allows for multiple adjustment angles and articulation of device
6. Includes Tether for open cockpit and extreme environments
7. Lifetime warranty
Material:
Powder Coated Marine Grade Aluminium, High Strength Composite & Stainless Steel
Ball Size:
B Size 1" Rubber Ball
DEVICE COMPATIBILITY
Apple
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xs Max
iPhone 11 Pro Max
iPhone 12 Pro Max
iPhone 13 Pro Max
iPhone 14 Plus
iPhone 14 Pro Max
iPhone 15
iPhone 15 Plus
iPhone 15 Pro Max
Blackview
BV9900
BV9900 Pro
Cat
S42
S62
S62 Pro
Garmin
Drive 50
Drive 51 LM
Drive 52
Drive 61 LM
DriveSmart 51 LMT-S
DriveSmart 61 LMT-S
DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
Pixel 7 Pro
Pixel 8 Pro
Motorola
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
Samsung
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A15
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy Note20 Ultra
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 Ultra 5G
Galaxy S23+
Galaxy S23 Ultra
Galaxy S24+
Galaxy S24 Ultra
Galaxy XCover7
RAM X-Grip
The spring-loaded RAM X-Grip cradle expands and contracts to provide a perfect fit for your device.
Made of high-strength composite and stainless steel, this popular phone & tablet holder is compatible with a wide variety of RAM mounting bases.
Available for phones and smaller tablets the RAM X-Grip cradle secures your device while keeping it completely functional and accessible.
No matter what mounting base you pair the RAM X-Grip with, the RAM ball and socket technology allows for near-infinite adjustability.
