RAM ½” NPT Female Threaded Hole Base 1.5" Ball
SKU: RAM-218-1U
By RAM Mounts
$36.95

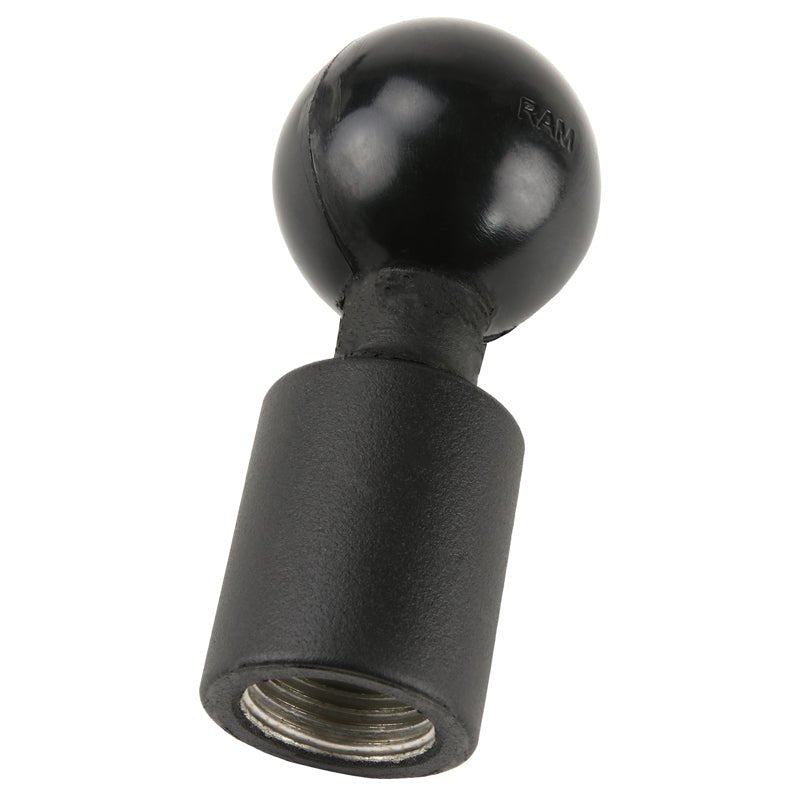

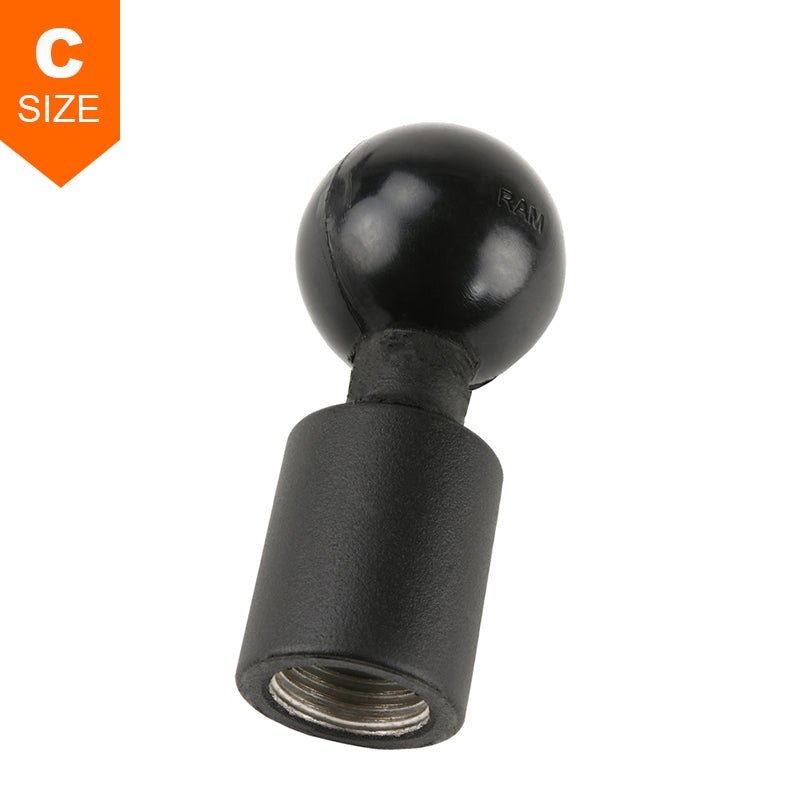

The RAM-218-1U consists of a 1" ball and 0.5" NPT female thread. This part connects to any 0.5" NPT male thread, including RAM-PF-585-X flex arm series mounts and RAM-PA54XX rigid arm series mounts.
Thread Pitch:
½” NPT
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball C Size
Note:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below.
| NPT Size. (NPS) | Pipe Outer Dia. (OD) | Threads Per Inch (TPI) |
| 1/4" | 0.540" | 18 |
| 1/2" | 0.840" | 14 |
| 1 | 1.315" | 11.5 |
