RAM Surface Mount with 100mm x 100mm VESA Plate 3.38” Ball
SKU: RAM-E-101U-246
By RAM Mounts
$603.95

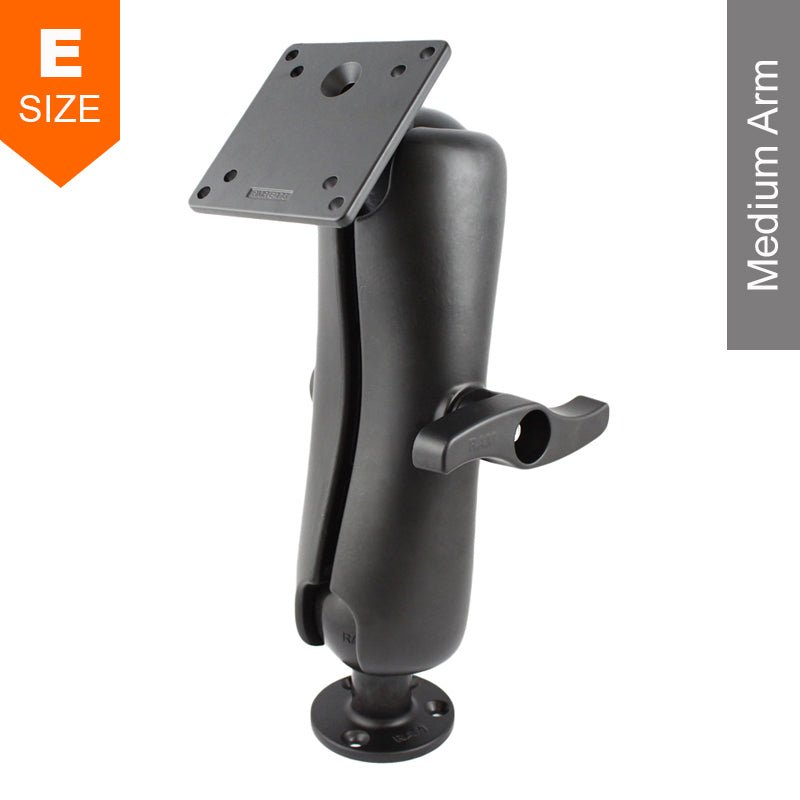

The RAM-E-101U-246 consists of a 93mm (3.68") diameter round base, MEDIUM length double socket arm and 120mm (4.75") square plate with the VESA hole pattern. The 120mm (4.75") square plate has 4 x 100mm holes and 4 x 75mm holes in each corner.
The 93mm (3.68") diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.
This kit is recommended for mounting heavy devices such as monitors and flat screen electronics.
Dimensions:
Socket to Socket Length: 251mm (9.875”)
VESA Dimensions:
75mm x 75mm
100mm x 100mm
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
3.38" Rubber Ball E Size
