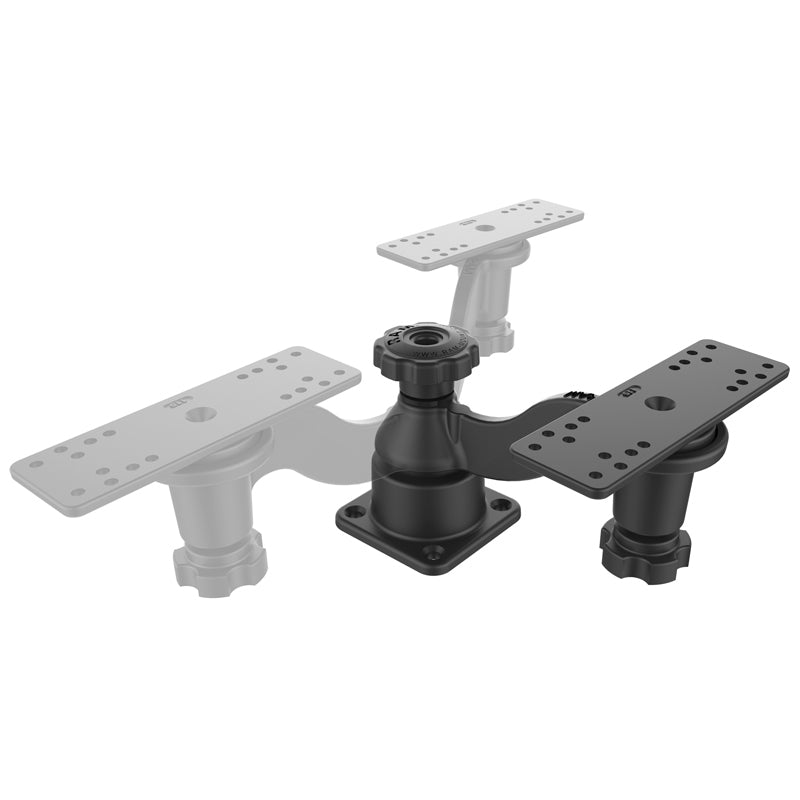

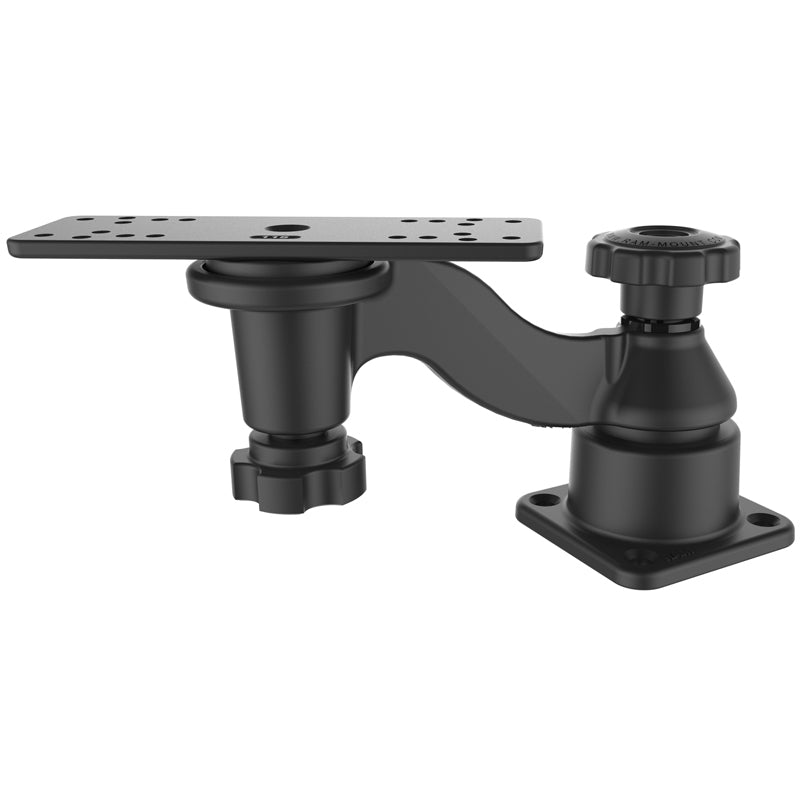

The RAM-109HU consists of a 152mm (6") long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 159mm x 50mm (6.25" x 2") plate.
There are two pivoting points on the mount: one at the base of the swing arm and one at the centre of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.
Dimensions:
Overall Height: 137mm (5.41”)
Total Swing Arm Length: 152mm (6”)
Plate Size:
Top Plate: 159mm x 50mm (6.25” x 2”)
Bottom Plate: 88mm x 88mm (3.47” x 3.47”)
Material:
Powder Coated Marine Grade Aluminium
Note:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Device Compatibility:
• Garmin ECHOMAP Chirp 72-95 Series
• Garmin ECHOMAP Plus 72-97 Series
• Garmin ECHOMAP UHD 62-95 Series
• Garmin ECHOMAP UHD2 5"
• Garmin ECHOMAP UHD2 7"
• Garmin ECHOMAP UHD2 9"
• Garmin ECHOMAP Ultra 102sv
• Garmin ECHOMAP Ultra 106sv
• Garmin ECHOMAP Ultra 2 10"
• Garmin ECHOMAP Ultra 2 12"
• Garmin GPSMAP 722
• Garmin GPSMAP 722xs
• Garmin GPSMAP 723
• Garmin GPSMAP 723xsv
• Garmin GPSMAP 742
• Garmin GPSMAP 742xs
• Garmin GPSMAP 743
• Garmin GPSMAP 743xsv
• Garmin GPSMAP 8410
• Garmin GPSMAP 8410xsv
• Garmin GPSMAP 8412
• Garmin GPSMAP 8412xsv
• Garmin GPSMAP 8416
• Garmin GPSMAP 8416xsv
• Garmin GPSMAP 8610
• Garmin GPSMAP 8610xsv
• Garmin GPSMAP 8612
• Garmin GPSMAP 8612xsv
• Garmin GPSMAP 8616
• Garmin GPSMAP 8616xsv
• Garmin GPSMAP 922
• Garmin GPSMAP 922xs
• Garmin GPSMAP 923
• Garmin GPSMAP 923xsv
• Garmin GPSMAP 942
• Garmin GPSMAP 942xs
• Garmin GPSMAP 943
• Garmin GPSMAP 943xsv
• Garmin GPSMAP 1223
• Garmin GPSMAP 1223xsv
• Garmin GPSMAP 1243
• Garmin GPSMAP 1243xsv
• Garmin Striker Plus 5cv
• Garmin Striker Vivid 5cv
• Garmin Striker Plus 7cv
• Garmin Striker Plus 7sv
• Garmin Striker Vivid 5cv
• Garmin Striker Vivid 7cv
• Garmin Striker Vivid 7sv
• Garmin Striker Plus 9sv
• Garmin Striker Vivid 9sv
• Garmin Fishfinders and GPS Chartplotters
• Humminbird Apex 13
• Humminbird Apex 16
• Humminbird Helix 8
• Humminbird Helix 9
• Humminbird Helix 10
• Humminbird Helix 12
• Humminbird Helix 15
• Humminbird Solix 15
• Humminbird Fishfinders and GPS Chartplotters
• Lowrance Eagle 7
• Lowrance Eagle 9
• Lowrance Elite FS 7
• Lowrance HDS Carbon 7
• Lowrance HDS LIVE 7
• Lowrance HDS LIVE 9
• Lowrance HDS LIVE 12
• Lowrance HDS PRO 9
• Lowrance HDS PRO 10
• Lowrance HDS PRO 12
• Lowrance HDS PRO 16
• Lowrance Hook Reveal 7 Series
• Lowrance Hook Reveal 9 Series
• Lowrance HOOK-9
• Lowrance Fishfinders and GPS Chartplotters
• Raymarine Fishfinders and GPS Chartplotters
